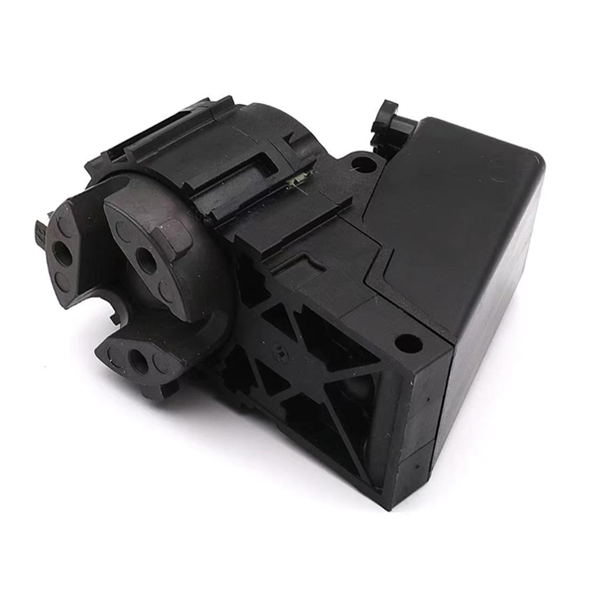

203 Power Folding
Quantity:
WH-PF-05
203 Power Folding
| 产品数据概要 General Producf Data | |||||
| 描述 Describe | 规格 Specifications | ||||
| 折叠控制器外形尺寸 Folding controller size | 见图纸 | ||||
| 正常工作电压 Normal operating voltage | 12（VDC) | ||||
| 工作电压范围 Operating voltage range | 9 to 16(VDC) | ||||
| 工作环境范围 Scope of work environment | —30～80℃ | ||||
| 展开角度 Angle of spread | ≤80° | ||||
| 折叠角度 Folding angle | ≤105° | ||||
| 功能测试 Functional Measurement(Pre-test) | |||||
| 描述 Describe | 规格 Specifications | ||||
| 运行速度 Running speed | 3-7/S | ||||
| 额定电流 Rated current | ≤600mA | ||||
| 堵转电流 Locked rotor curren | ≤1.5 A | ||||
| 手动折拢力 Manual folding force | 4-8 N.m | ||||
| 手动张开力 Manual opening force | 6-14 N.m | ||||
| 噪音水平 Noise leve | 50-60dB | ||||
| 承载重量 | Load Capacity | ≤900g | |||
