A Plug Type Electric Mirror Actuator for Passenger Cars(12v)

Quantity:

Contact Now

add to cart

WH-MA-04

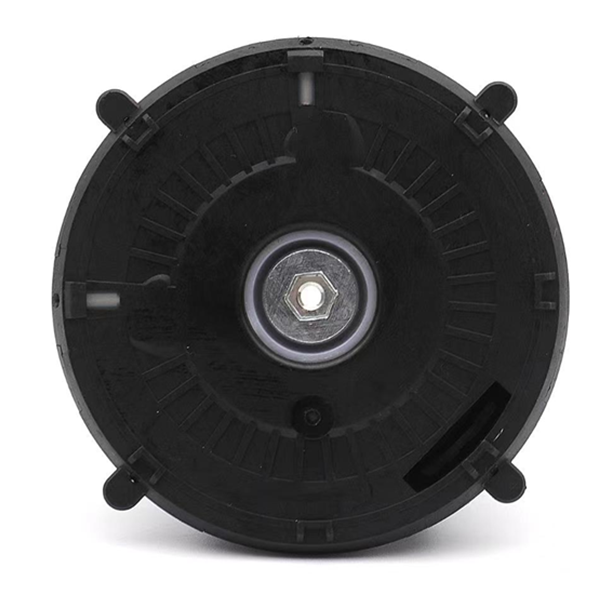

Electric Mirror Actuator for passenger cars

Part Name	A Plug type Electric Mirror Actuator for passenger cars(12v)
Specification	technical standard
Operating Voltage Range	9.0VDC～16.5VDC
Operating Voltage	DC 12±2V
Operating Current	≤60 mA
Stall Current	≤125 mA
Travel Speed	2.5～4.0°/s
Operating Temperature Range	-40℃～80℃
Operation Endurance	23±2℃ 8000 times 80±2℃ 2500 times -40±2℃ 2500 times 40±2℃ 2000 times 98%humidity total≦15000 times
Manual Set Torque	0.8～1.5 N.m
Electric Set Torque	0.25～0.75N.m
Adjustment Angle	≥20°
Noise Level	≤60dB (Distance：200mm)
Free Play	≤0.4°
Mirror Glass Weight Support	300g
