Anti-glare Principle of Car Rear View Mirror

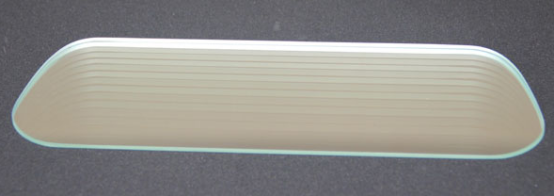

Disassemble the plastic shell, and the lens inside looks like this:

We can see from the plane that there are multiple lights and shadows in the mirror.

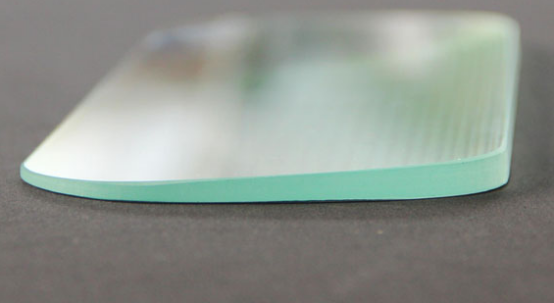

Let's look at it from the side:

It turns out that the lens is a bevel. This is why it can prevent glare.

By changing the angle of the lens to change the refractive index of the strong light irradiated from the rear of the car, it can play a role of anti-glare .

The lens is made of special glass, the back side is silver-plated, and a protective sticker is attached.

The anti-glare principle of a car rearview mirror, often referred to as an auto-dimming or electrochromic mirror, is designed to reduce glare from headlights of vehicles behind you during nighttime driving. This technology helps improve visibility and reduces eye strain for the driver. Here's a brief overview of the anti-glare principle:

1. Electrochromic Technology:

   • Auto-dimming rearview mirrors typically employ electrochromic technology. This technology involves a special electrochromic gel or film sandwiched between two layers of glass in the mirror.

2. Dimming Process:

   • When an electrical current is applied to the electrochromic layer, it causes a chemical reaction that darkens or dims the mirror. This dimming process is activated automatically based on sensors that detect ambient light conditions and glare from headlights behind the vehicle.

3. Light Sensors:

   • The mirror is equipped with sensors that detect the intensity of light around the vehicle. During nighttime driving, when headlights from vehicles behind create glare, the sensors trigger the dimming process.

4. Reduction of Glare:

   • As the mirror dims, it reduces the intensity of light reflected from headlights, minimizing glare for the driver. This results in a clearer and more comfortable view through the rearview mirror.

5. Automatic Activation:

   • The auto-dimming feature is designed to activate automatically, allowing the driver to focus on the road without manually adjusting the mirror. The transition from a standard mirror to a dimmed state is seamless and quick.

6. Return to Normal State:

   • Once the glare diminishes or the ambient light conditions change, the electrochromic mirror gradually returns to its normal, non-dimmed state. This ensures optimal visibility during daytime or when glare is not a concern.

7. Integration with Other Features:

   • Some advanced auto-dimming mirrors may be integrated with other features such as a compass, temperature display, or even HomeLink systems for controlling garage doors and other compatible devices.

The anti-glare principle of auto-dimming rearview mirrors enhances driving safety by reducing the impact of glare from headlights behind the vehicle. It's a technology that prioritizes driver comfort and visibility during nighttime conditions, ultimately contributing to safer and more enjoyable driving experiences.

Here are some additional details about auto-dimming rearview mirrors and their anti-glare features:

1. Multiple Sensors:

   • Advanced auto-dimming mirrors often use multiple sensors to detect ambient light and glare. These sensors are strategically placed to provide accurate readings and ensure a prompt response to changing light conditions.

2. Microprocessor Control:

   • The system is typically controlled by a microprocessor that analyzes the information from the light sensors. This allows for precise adjustments in real-time, ensuring that the mirror responds quickly to varying light levels.

3. Gradient Transition:

   • The transition from a standard mirror to a dimmed state is often gradual and may occur in multiple stages. This helps avoid sudden changes in visibility and ensures a smooth adjustment that is less noticeable to the driver.

4. Customizable Sensitivity:

   • Some auto-dimming mirrors allow drivers to customize the sensitivity of the system. This means that drivers can adjust how much glare triggers the dimming process, providing a personalized experience.

5. Integration with Vehicle Systems:

   • In modern vehicles, auto-dimming mirrors may be integrated with other safety systems, such as adaptive cruise control or collision warning systems. The mirror's ability to reduce glare contributes to the overall effectiveness of these safety features.

6. Compatibility with Various Light Sources:

   • Auto-dimming mirrors are designed to respond not only to headlights from other vehicles but also to various light sources, such as streetlights or bright signage. This versatility ensures effective glare reduction in diverse driving environments.

7. Maintenance-Free Operation:

   • Once installed, auto-dimming mirrors are generally maintenance-free. The electrochromic gel or film is sealed within the mirror, protecting it from environmental factors and ensuring long-lasting performance.

8. Energy Efficiency:

   • Auto-dimming mirrors are energy-efficient, consuming power only when transitioning between states. The system is designed to minimize power usage, contributing to the overall energy efficiency of the vehicle.

9. Aftermarket Options:

   • For vehicles that do not come equipped with factory-installed auto-dimming mirrors, there are aftermarket options available. These mirrors can often be installed as upgrades and provide similar anti-glare functionality.

10. Global Adoption:

    • Auto-dimming mirrors have become a standard feature in many high-end and luxury vehicles. However, as technology advances, they are increasingly being incorporated into a wider range of vehicles.

Auto-dimming rearview mirrors represent a significant advancement in automotive safety and comfort, particularly during nighttime driving. Their sophisticated technology ensures that drivers can maintain optimal visibility while minimizing the effects of glare from various light sources.
