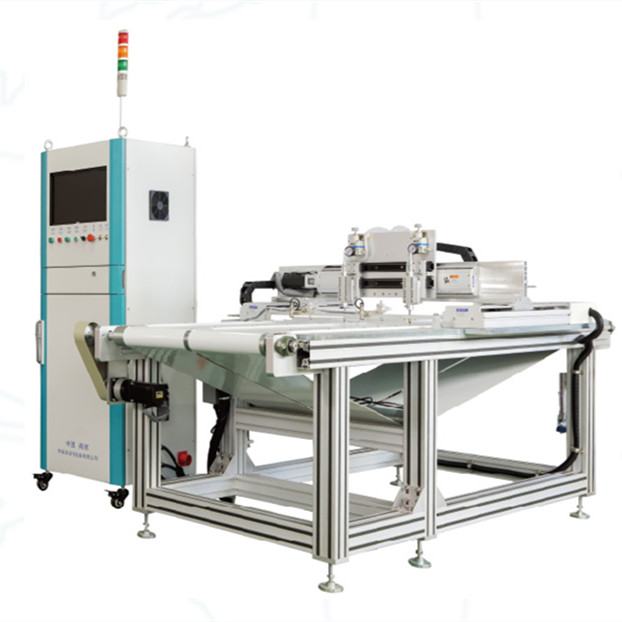

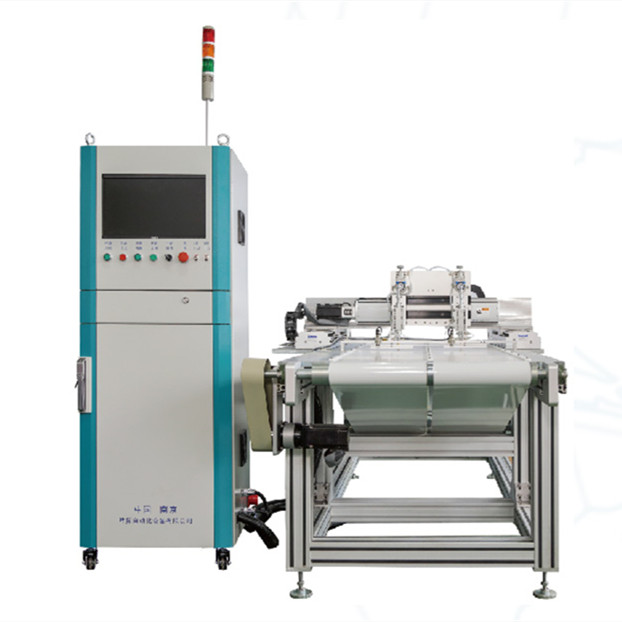

CNC Dual-position Glass Cutting Machine

The equipment by precision manipulator, servo drive system, computer control system, and the workbench, cutting knife has always aimed at the center of the arc glass, can be precisely adjusted glass cutting depth. This device is especially suitable for cutting deep curvature glass, which can be widely used in automobile rear view mirror, mirror, magnifying glass, household electrical glass and photovoltaic glass production

Features
1.Large cutting scope and quick cutting speed

2.The four axis linkage and the cutting depth are consistent
3.The cutting precision is high and the sharp angle compensates automatically

4.The key parts adopt international famous brand products,stable, durable, with few failures
5.The software is easy to learn

Main parameters
1.Cutting range:≯Φ525mm, can be customized

2.Drive system:servo motor,precision ball screw, ultra-precision planetary gear
3.The minimum curvature radius:≮SR100mm
4.Cutting thickness:1-5mm，can be customized

5.Work table size:1150x940mm
6.Cutting precision:≤+/-0.10mm

7.Input power:single phase 220V/2.5kw, other voltage level can be customized
8.Control system:CNC computer control, four-axis linkage
9.Input air source:0.6-0.8MPa
10.Equipment volume:LxWxH1150x960x1900mm
