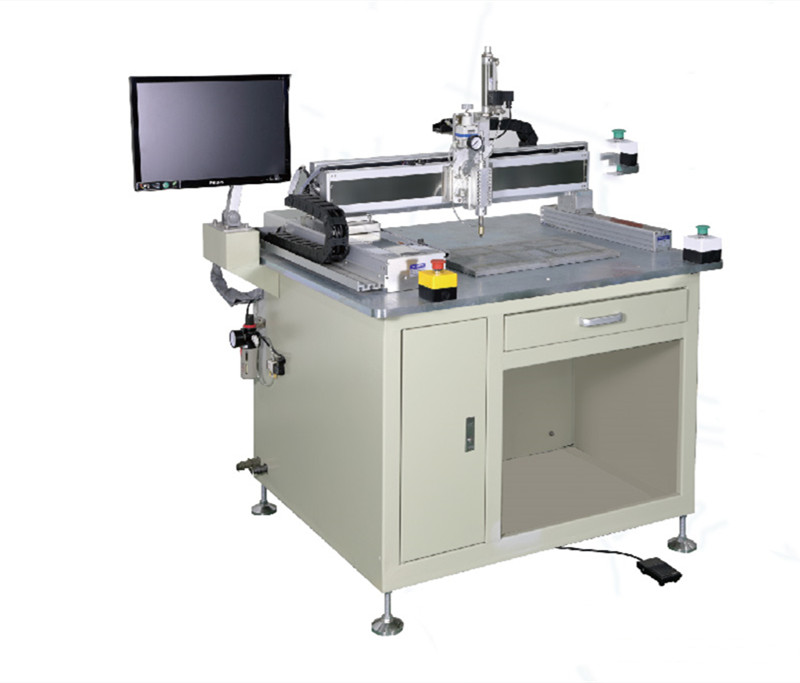

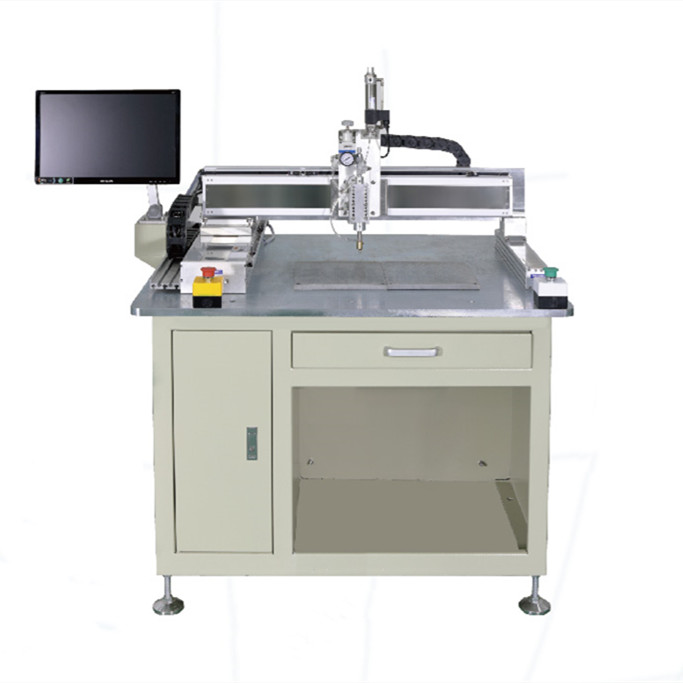

CNC Special-shaped Glass Cutting Machine

The equipment is composed of a precision manipulator, servo drive system, computer control system and operating table. Turn on the power supply, and the gas source and computer automatically generate the cutting program, the cutting knife pressure can be adjusted, the cutting depth automatic compensation.
The device is widely used in automotive rear view mirrors, cosmetic mirrors, magnifying glasses, home appliance glass, and photovoltaic glass production areas.

Features
1. Large cutting scope and quick cutting speed

2. High-precision ball screw, high-speed servo motor, and precision pneumatic components
3. The cutting precision is high, and the cutting depth is consistent

4. Simple operation, complete protection function, and easy maintenance
5. The software is easy to learn, and the graphics call is easy to modify
Main parameters
1. Effective stroke:350x500mm can be customized

2. Working table size:1000x1100mm, can be customized
3. Glass type: flat glass or glass curvature radius

4. Control system: industrial computer CNC cutting software
5. Glass thickness:0.5-6mm can be customized

6.Input power: single phase 220V/2kw, other voltage level can be customized
7. Cutting precision:≤+/-0.1mm
8. Input air source:0.6-0.8MPa

9. Cutting speed:≥20M/min

10. Equipment size: L*W*H 1100x1000x1300mm
